Modelon Deployment Suite

Modelon offers a comprehensive suite of deployment products, designed to rapidly deploy system models across multiple platforms, varying tools, and organizations. Our deployment suite products, built on the Functional Mock-up Interface (FMI) standard, enable customers to utilize open standards for model exchange and co-simulation of dynamic models at the system and component level.

Modelon Deployment Suite Benefits:

Connect your models faster and easier with FMI Composer.

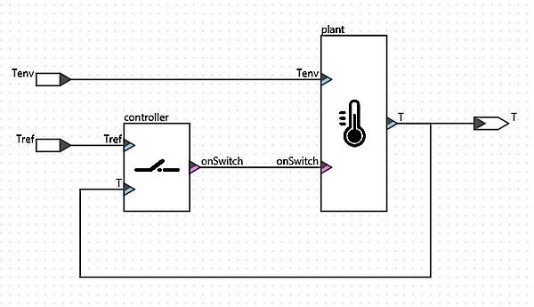

FMI Composer enables users to build system models from multiple FMUs and is the first tool to be built entirely on the FMI and SSP standards. FMI is the world’s leading standard for model exchange and co-simulation, with over 100 modeling and simulation tools supported. Its companion standard SSP (System Structure and Parameterization) is soon-to-be-released (early 2018) and further extends FMI functionality by describing systems of connected FMUs and the parameterization of such systems.

FMI Composer (along with the FMI and SSP standards) allows different teams, using different modeling tools, to access each other's models; and to work together to specify interfaces between respective components - ensuring synergy. Users can define how FMUs are connected to other FMUs and to external inputs and outputs. Optionally, graphical layout information can be provided to visualize system structure in a standardized way and allow for drag-and-drop type modeling.

Key Features

Modelon's FMI Toolbox supports all major workflows in control system development and system integration for virtual prototyping, from design and sizing to optimization and MIL/SIL/HIL validation & verification testing in MATLAB/Simulink. The additional FMI Toolbox Coder Add-on provides extensive support enabling users to export FMUs from Simulink and import FMUs to a Simulink Coder target.

Key capabilities and features related to the latest version of the FMI Toolbox are below.



• - Integrate simulation models from more than 80 tools into your Simulink workflow
• - Simulink FMU block including a flexible and intuitive graphical interface to; set parameters, select block outputs, set simulation options, add icon, and create Simulink buses for inputs and outputs to manage FMUs with many signals
• - Automate workflow by accessing FMU block settings through scripting
•

Requirements: Matlab and Simulink

• - Scripting simulations of FMUs in Matlab via APIs
• - Intuitive interface that connects FMUs to MATLAB ode solvers
• - Create custom solutions for simulating and analyzing FMU models
• - Model Exchange FMU analysis functions, including: linearization computing from input to output, steady-state computation, and design space exploration through DoE
•

Combine the visualization and data management capabilities of Microsoft Excel with multicore simulations from Modelon's FMI Add-In!

FMI Add-In, a plugin for Microsoft Excel, is a powerful simulation software tool that enables users to import and simulate Functional Mock-up Units (FMUs) in a spreadsheet environment. Customizable analysis and simulation functionality of model-based workflows is coupled with the data management and visualization capabilities available in Microsoft Excel and Visual Basic.

Benefits
